Learn about the pros & cons of using React Native for app development, how to test React Native app Appium, and a comparison between Appium and other apps.
Well, good morning everyone. This is Jonathan Lipps and I’m here with the HeadSpin team and we are going to have a little half hour webinar this morning talking about automated testing for React Native apps with Appium. So, if you’re just joining us, don’t worry, I’ll be doing intro stuff for the next minute or so, so you can get in and get settled and run and make that last trip for coffee if that’s what you need to do. Yeah, let’s take it away. So, this is me here. I work for a company – I shouldn’t say I work for it – I basically am the entire company, I have a consulting firm called Cloud Grey. We do mobile automation strategy for primarily enterprise clients helping them get their mobile automation off the ground and meeting whatever challenges they have.
I’ve been working with Appium for a long time. I started writing the code for Appium back when it was a new thing in early 2013. So, it’s been six and a half years of hacking on Appium. I know an awful lot about that, but had the chance in the course of preparing for this webinar to branch outside of Appium a little bit because when it comes to React Native, there are several other testing tools and methods that people tend to use, so I was able to have a look at those and at the end of the webinar will talk about how they compare with Appium and when you might want to use one or the other.
Check out: Tips for Speeding Up Your Remote Appium Sessions
React Native
Let’s dive into the first topic today, which is a brief discussion of what React Native is. I think we all have some idea whether or not we’ve used React Native that it has something to do with mobile applications and React – that’s kind of right there in the name – but I think it’s helpful to know a little more about how React Native apps works. So, we’re going to talk about that.
Also Check: Appium Tools for Rapid Development of Functional & Performance Tests
Just briefly, the motivation for React Native comes out of this fact – I suppose it’s a fact, it’s debatable – but there’s places out there where people have done research that claim, anyway, that from a user perspective, Native apps are perceived as faster and better than the alternatives of hybrid or web apps, and we’ve had high-profile cases of companies like Facebook taking their app from a hybrid version and doubling down on Native.
See: Facts to Note About Using Appium for Desktop Applications
There are certainly examples of that and in a way, it makes sense. This is because writing Native apps means using the Native software development kits provided by the operating system vendors, so they have access to all of the lowest level APIs that are available on a particular device. This does mean, however, that if you’re trying to develop an app and get it into the hands of both iPhone and Android users, you have to write code for two different platforms, maintain two, totally separate code bases, which basically doubles the amount of people you need to hire to get the project off the ground, and doubles the amount of work you need to do. You might be able to share some design assets and maybe it’s not exactly double in all respects, but in terms of the code, it’s a lot of extra work.
Also see: Automating Mobile Web Browsers with Appium
From a development perspective, as developers, we tend to prefer writing as little code as possible, and for good reason, because code has bugs, so we want as little code as possible. And so, when it comes to writing a mobile app, as developers, we would certainly prefer to have a single code base and would obviously prefer to use tools that we already know how to use. It’s all good and fine to learn Swift or Kotlin and do iOS or Android development and that might be fun, but if we have a job to do and we’re on a schedule and our skill set is in web development, we might prefer to work with web development tools. Indeed, that’s the motivation for hybrid apps in the first place, and [that’s] why projects like PhoneGap or Ionic or these types of things really focused on letting developers use web development technologies to produce mobile applications.
Read: Native, Web, Hybrid, & Progressive Web Apps - Development and Testing
What React Native is all about is sort of giving you the best of both worlds, or trying to. It lets you target the native SDKs of iOS and Android, but using the languages and technology is that you’re familiar with from web development – so JavaScript, CSS-ish styling language, and things like that.
Also read: Improving mobile user experience through SDK abstraction

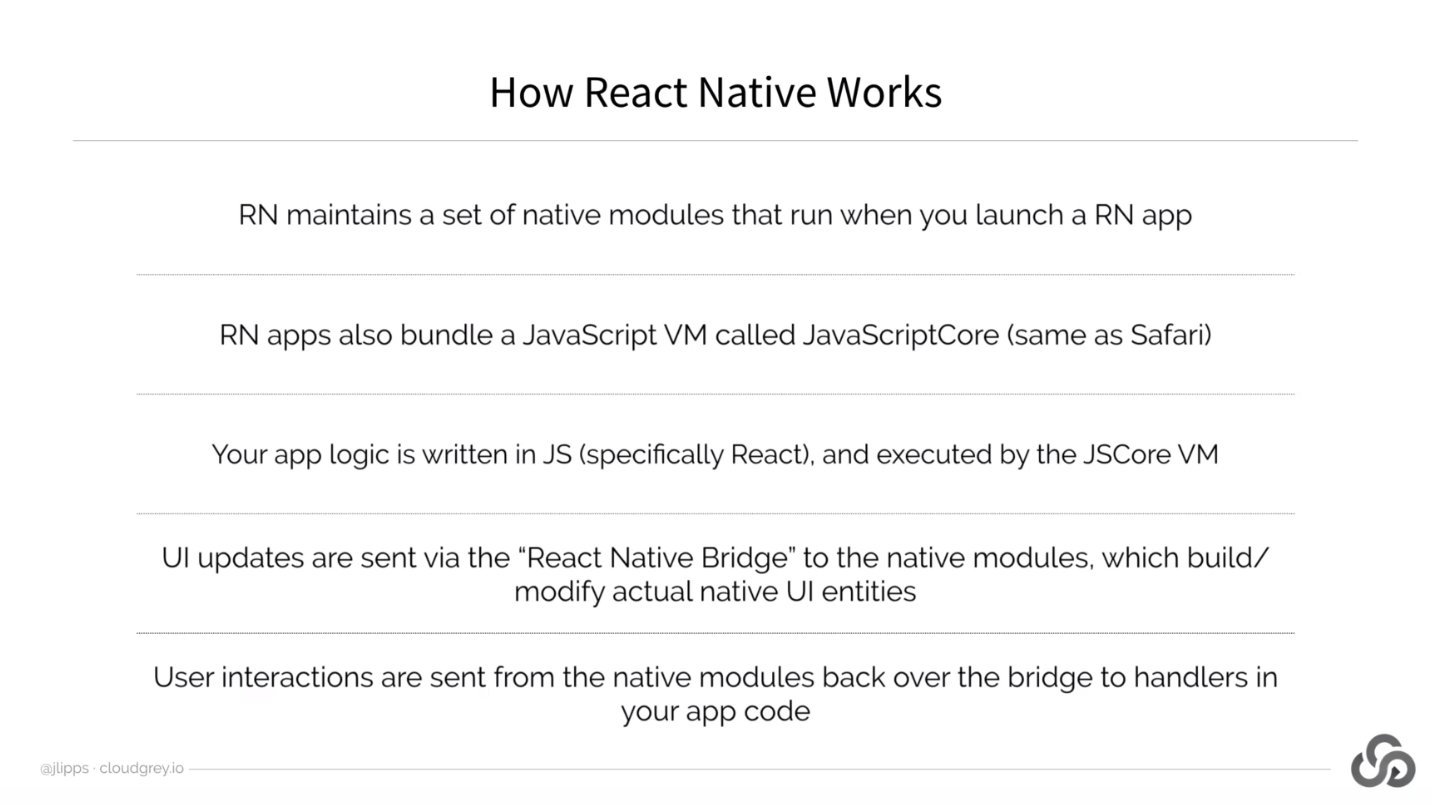

How does React Native do this awesome feat? Well, the React Native code base maintains a set of Native modules. This is code, which is written in Java for Android or Objective-C, or Swift for iOS, or the import libraries and frameworks from the Android and iOS development kits. These modules run whenever you launch an app, which has been developed with React Native.
These are just pure native bits of code: you didn’t write these bits of code. It’s part of the React Native project, but it gets bundled in whenever you use React Native to create your own app, so this is the stuff that actually gets launched whenever you launch a React Native app, and that’s why the iOS and Android operating systems believe your app to be native, because it is, from the perspective of the operating system.
In addition to these native modules, the native modules being responsible for all the native API calls and so on, React Native apps also contain a JavaScript engine. This engine is called JavaScriptCore. It’s the same engine as is used in Safari, the browser. It’s an open-source JavaScript engine.
So, we’ve got our Native modules, and we’ve got this JavaScript engine or VM, which can run any new JavaScript that we choose to throw at it. So that’s what happens as a React Native developer: what we do is write all of our app logic in JavaScript, and obviously we’re using the React framework in JavaScript, although not dealing with web pages here, but dealing with a virtual Dom of mobile UI components, and all of this JavaScript is executed by this VM, which has been bundled into your application by React Native.
Check: Popular Test Automation Tools for React Native Apps
What happens is these two pieces, your JavaScript code and the Native modules, communicate with one another over something called the React Native bridge and it has its own particular protocol that it uses for that communication.
Basically, what this does is it allows user interactions and feedback to go from JavaScript to the Native layer and back. That means you can code up all of your UI components or all of your user event handlers in JavaScript, but actually in reality there are being built and handled by the Native modules and then there’s just this bridge which communicates between the two to give you this best of both worlds scenario where you can write using web technologies and yet still be ultimately targeting Native platforms and using Native UI components and so on.

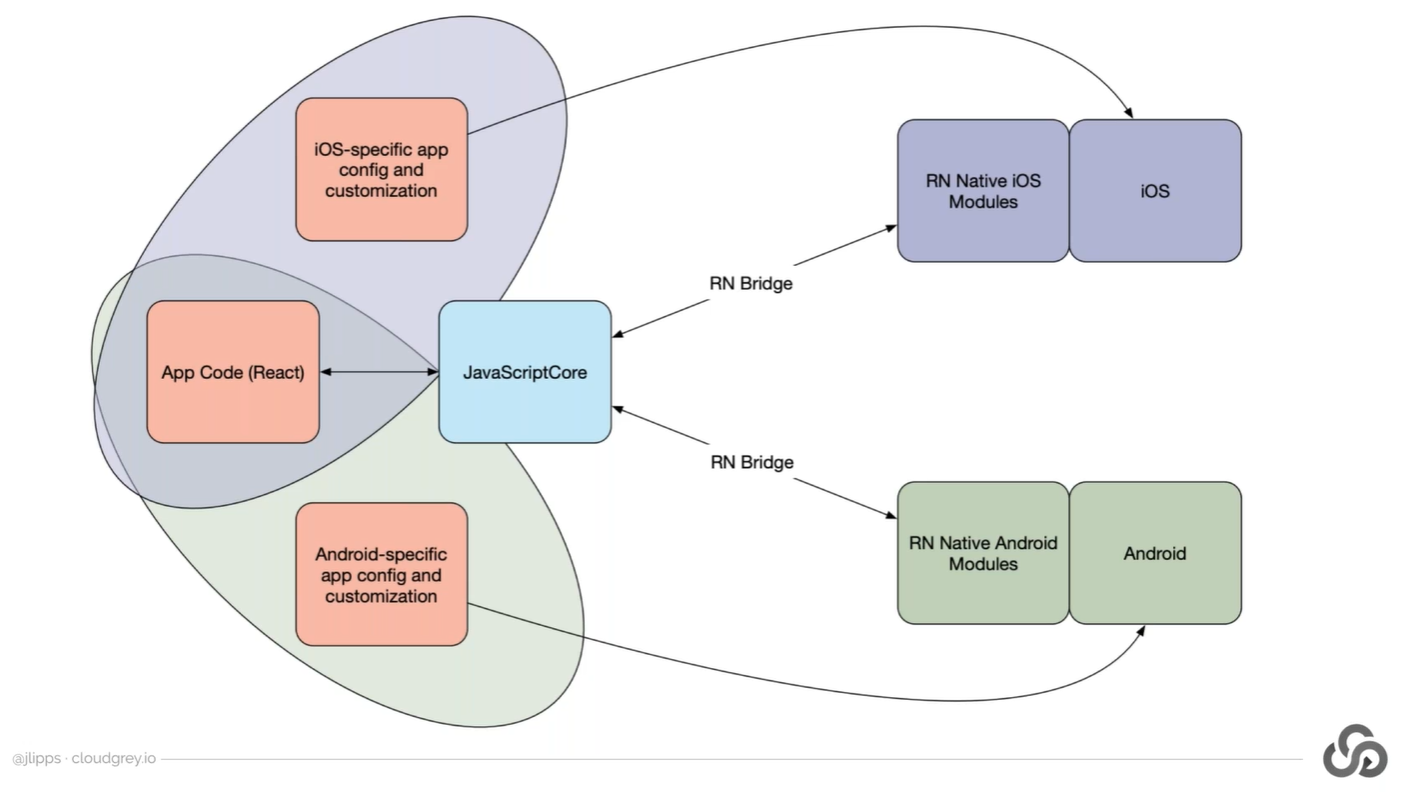

So, that’s all a bunch of words, and it might be easier to look at it in a schematic form. Basically, we’ve got our two mobile platforms at the far right: we’ve got iOS and Android and, coupled very tightly with iOS and Android from the perspective of React Native applications, are these Native modules that we were talking about. They hook in directly to the Native operating system as those operating systems launch an application, just like any other Native app would be, but then what’s different with the React Native app and the pieces of the architecture that we have here that we wouldn’t have with a fully Native app, are of course this JavaScriptCore engine which communicates to the Native modules via the React Native bridge, and then we have our own app code.
In an ideal world, all we’re responsible for is actually that reddish-orange bit at the far left, it says “app code” – that’s what we’re responsible for writing and maintaining, and that code, ideally doesn’t reference anything like a UI button on iOS or an Android.widget.edit text on Android. It abstracts away all of those Native UI concepts, so all we do is we write standard React components like button or input fields or whatever and that gets ultimately rendered appropriately on whatever platform we’re targeting. This is an ideal scenario where we’re just responsible for writing and maintaining some JavaScript and CSS, and yet we still have the performance and snappiness of Native applications from a user perspective.
Optimize digital experiences with the mobile app performance testing by identifying and resolving performance issues across applications, devices and networks. Learn more!
In reality, it’s a little more complex because there’s often platform specific configuration or customization that needs to happen to make your app work exactly the way you want it to on each of the two platforms, and that platform-specific configuration needs to be maintained in a platform-specific way.
So, for iOS, we have our info.plist file, which has a bunch of information about our iOS application.
For Android, we have our Androidmanifest.xml, which we might have to maintain little bits of information in.
In reality, what we end up with as a React Native developer is a core of shared code written in JavaScript and then a small halo of platform-specific code that we do have to maintain. It’s hard to get away from knowing something about the Native development environment, so if you’re just a web developer and you’ve never done any Android or iOS development, you will have to learn a little bit about Android and iOS development to be successful as a React Native developer.
This is actually part of the design of React Native: its developers don’t claim that you can have a purely single code base running on both platforms, but that the core of it can be shared in this one place. And then, if you have any specific modifications, you can keep those small and easy to update. So, this is what it’s like as a React Native developer.

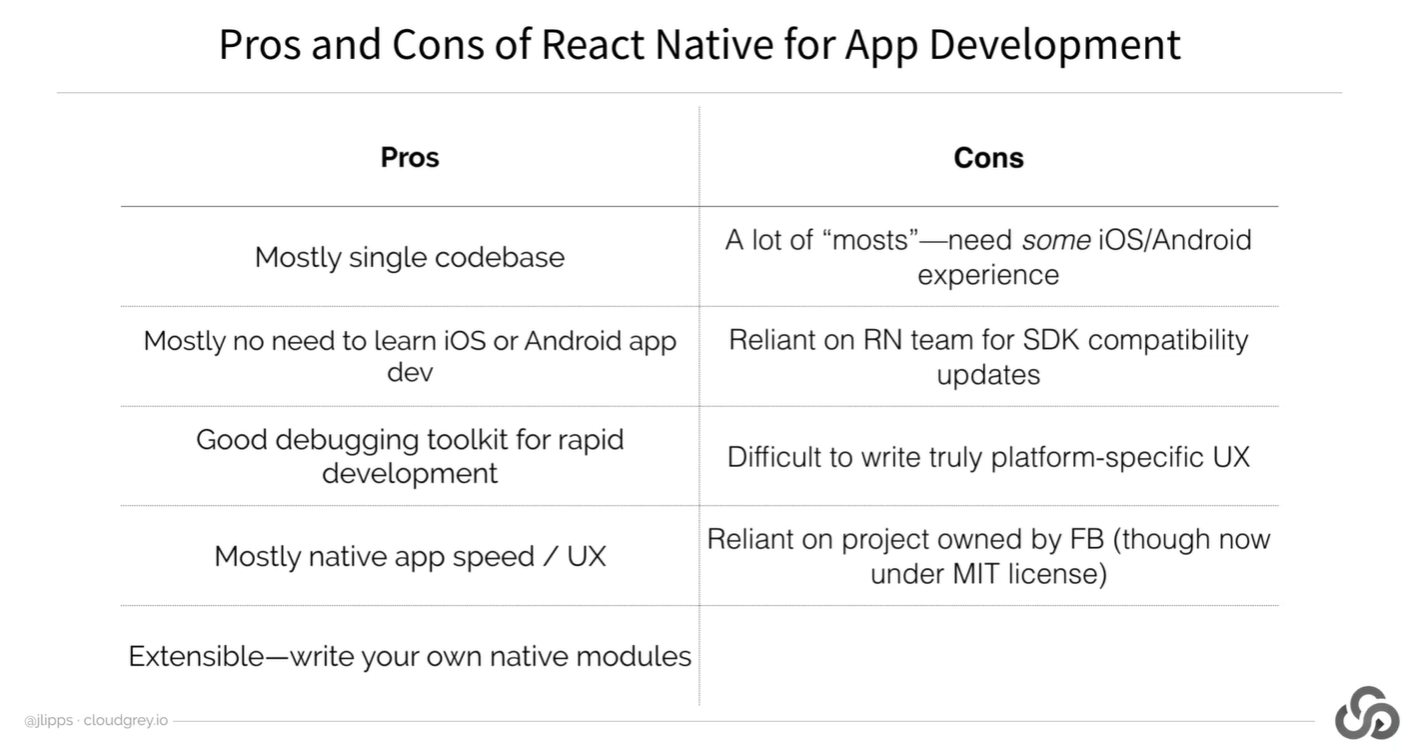

What are the pros and cons of choosing this method for app development?
Well, there’s a lot of positive aspects of it and I’m actually a fan of React Native personally. I’ve used it for my own app development and I like it quite a lot.
The good things about React Native are that you have mostly a single code base, as we talked about, and there’s mostly no need to learn iOS or Android app development. I’ve learned just enough to make my React Native apps and do the kind of stuff that I do with Appium, but I didn’t have to do a deep dive into iOS or Android app development to write my React Native app.
React Native has a pretty good debugging story. You can change your JavaScript code and then refresh your application, just as you would refresh a web page. You don’t need to rebuild it because your JavaScript code that you’re developing can just be sort of side-loaded into a running instance of your application because, from the operating systems perspective, that JavaScript is all just living in the user space of your application. You can change it anytime you want.
It enables some pretty interesting debugging stories. You get, again, mostly Native app speed and user experience. And, that’s the whole point: that ultimately, we’re dealing with Native applications here and not hybrid applications. I say that mostly because you still have a little bit of overhead with the JavaScript engine and the React Native Bridge.
Another nice thing about React Native is that it’s extensible. If you want to do something to tie into the Native operating systems that is not yet available in React Native’s native module space, you can add your own extension and then just use it and share it with other people as well.
The cons of React Native development are, as you can tell on the list of pros, that there’s a lot of “mosts”. So, it’s not a perfect solution and you do need to get your hands dirty with a little bit of iOS and Android experience to be successful. As I said, we have this mostly Native app speed, mostly Native user experience, but every once in a while, you might run into a few performance issues or design issues as a result of trying to design a cross-platform application, things like that.
Don't forget to check: Facets to Select Cross Platform Testing Tools
You’re also reliant on the React Native team to update React Native whenever there are new versions of iOS and Android and to make sure that it keeps working with all those new versions, and that could be problematic.
In terms of the user experience itself – this is more of a conceptual issue just to do with writing a cross-platform app using any framework – but iOS and Android apps are different, and iOS and Android users have different expectations about how apps should look and behave.
If you’re writing one app, one UI for both platforms, you might run into problems where neither platform’s user base really thinks that you know what’s going on, that you know how to design for them specifically.
So, you might wind up in a spot where you have a lot of conditionals: if it’s Android do it like this, if it’s iOS do it like that, whether it’s a visual design thing or a functionality thing.
You might end up losing some of the benefits of a cross-platform code base by having a lot of these conditionals sprinkled in, but in practice, if you’re willing to sacrifice a bit of that design or user experience, you can benefit a lot from the shared code base.
Finally, it’s good for everyone to know that React Native is owned by Facebook. It used to have kind of a shady license actually, but as of sometime last year, they switched it to the MIT license, which is a great open-source license, so you can feel very comfortable using it. But, in terms of the future of React Native, it is a Facebook project, so who’s to say what they’ll do with the down the road. So, that’s [a summary of] React Native.
Now, let’s talk about Appium. If you haven’t heard of that before, we’re not really going to talk about it in this webinar here, but it’s an open-source mobile automation library that people use for testing native, hybrid and mobile web applications.
If you are relatively new to mobile automation and you want to learn about Appium, I actually just released a course on starting Appium from scratch yesterday, in conjunction with LinkedIn. Here’s the URL – you can check it out. That’s about two hours long and takes you through Appium set-up and all the basics. This will teach you how to write automated tests for react native mobile apps with Appium in general.
Let’s talk specifically about React Native and Appium and what is interesting or unique to running Appium tests on apps that have been developed with React Native.
The big reveal here is that there’s actually not that much to it. This is precisely because React Native apps are native apps. From the perspective of iOS and Android, a React Native app is just a native app like any other. iOS and Android don’t know that there’s this JavaScript engine that’s a part of React Native, which is making calls through this bridge protocol to the Native modules. That’s all kind of hidden from the perspective of the operating system.
The way that Appium works as it just uses the standard automation tools that have been provided by Apple and Google. So, from the perspective of those tools, everything just looks like a normal native application. All the elements are Native elements and you can typically automate a React Native test on a real device application without too much trouble just as it is. So, just like you would start an Android test using a set of desire capabilities like this with Appium and you pass in the path to your APK file – all of this is exactly the same when you’re dealing with React Native.
There’re no special capabilities you need to use, no special commands you need to use, and same goes for iOS. If you build your React Native debug application, you can certainly load it into an Appium session using capabilities something like this: your standard iOS platform capabilities and a path to your React Native application.
Okay, so what is different?
Well, the one thing that you need to worry about is making sure that your React Native app is appropriately testable. There’re just a few simple things you can do to make sure that this is the case.
Here’s an example of a React Native component. It’s an input field and it has a bunch of attributes. You can see that this input field has a certain style, certain placeholder text, and function, which is executed anytime the text in the field is changed. So, it calls a setState on the component. This is just a very basic React pattern.
The interesting attribute here is the one called testId. We’re basically telling React Native that we’re interested in this component when we’re running UI tests of this application, and that we want React Native to make sure to put this testId somewhere on the Native component, which implements this React component, so that when we go to do UI testing, we can find the Native component appropriately. This works pretty well.
If we take a look at an iOS version of React Native – here’s an application which I developed using React Native on the left. You can see a screenshot of the application and I’m using Appium Desktop’s inspector here to inspect the Native application. I’ve just loaded it up again without any React Native specific capabilities just like any other application that I’m loading up with Appium Desktop.
We can see that, just by including the testId in my React Native component, I can find the iOS component, which maps to that React component, because it has the appropriate name here. In other words, messageinput. I could very happily automate a test of this view using Appium by finding this element by its accessibility ID of messageinput and sending keystrokes to it and going on. So, that’s very straightforward.
Now, let’s say I loaded up the Android version of this application. Here’s the Android version. I’m on a different view, but it’s the same idea. We can see that there is sort of an interesting issue happening with the Android version of this application. The issue is that I have this whole list of buttons I can tap to go to different views of my application, but from the perspective of Appium, from the perspective of the Android operating system, I don’t see all these elements. All I see is one frame layout which has no children. So, the children aren’t available here.
This is a problem because now I can’t find the element that I set a testID on. The reason for this is that, for React Native for Android, when you assign a testID to a component, it puts that ID in something called a view tag of an Android element. Unfortunately, the standard Android automation technology that Appium uses doesn’t know anything about view tags and can’t access them. React Native does this because many Android developers use something called Espresso to test their applications and Espresso can access data inside view tags. From the React Native perspective, you’re supposed to use Espresso to test your applications, and that’s why they did it that way.
Also read: Getting Started with Espresso - A Complete Guide
So what can we do to make this application testable by Appium?
Well, what we need to do is make sure that, in addition to setting the testID for the component we want to test, we should also set the accessibility label, at least on Android. Now, the accessibility label is a label that shows up to the operating system for accessibility purposes so that the operating system can make sure to surface that information to someone who’s using the app in some kind of accessibility mode.
And what I’ve done here is I’ve created a very simple helper function in my React Native JavaScript code called testProps. What it does is it takes a testID and then returns keys and values – one key is testID and the other key is accessibilityLabel. The way that I use this on my component is, instead of just passing in the testID attribute, I pass in all of the properties that are returned by this testProps function. So just a nice concise way of making sure that every time I set my test ID, I’m also setting an accessibility label.
Of course, you want to be careful here, since you are setting accessibility labels, to set it to something that an actual human user would appreciate reading or hearing spoken to them. So, when we do this, if we reload the Android application, we’ll see that, voila! All of these elements which I’ve assigned test properties to can now be accessed in the hierarchy. Again, I could just write up a normal Appium script and test this application now without further ado.
There’s another strategy for dealing with this issue, and that’s making sure to set the accessible attributes appropriately. As a rule of thumb, if React Native believes that an element has an accessibility property, it won’t show you the child elements. I guess, [this is done so as to] not confuse the operating system to make sure that only one element in a hierarchy at a time is able to have accessibility attributes on it.
Let’s take a look at this component. Here is a component which has a scroll view and a text header and a list inside of it. This is actually the component that defines the view we just saw here. This is the list view that we’re seeing now in code.
So what I’ve done is I’ve added test properties, but what I’ve also done is made sure that the scroll view, which is the parent element, has its accessible attribute set to false. That allows everything underneath it to actually show up in the accessibility hierarchy. React Native doesn’t mask it in this case. These are two strategies which you can mix and match to make sure that all the elements that you want to interact with are actually findable by Appium, and that’s actually it. That’s really the only thing that I’ve come across in testing React Native applications that you need to worry about. Everything else is just standard Appium scripting.
Here’s a little video of a very simple test script I wrote for my React Native application, which is obviously cross-platform, just logging in to the secret area of the application. I wrote the same test code using Appium to automate both platforms of this React Native application. That’s Appium.
Remotely run cross browser tests and debug mobile, web, audio and video applications on thousands of devices around the world.
Let’s close by briefly discussing Appium versus other approaches, because in the React Native world, people use a set of different tools for testing their apps.

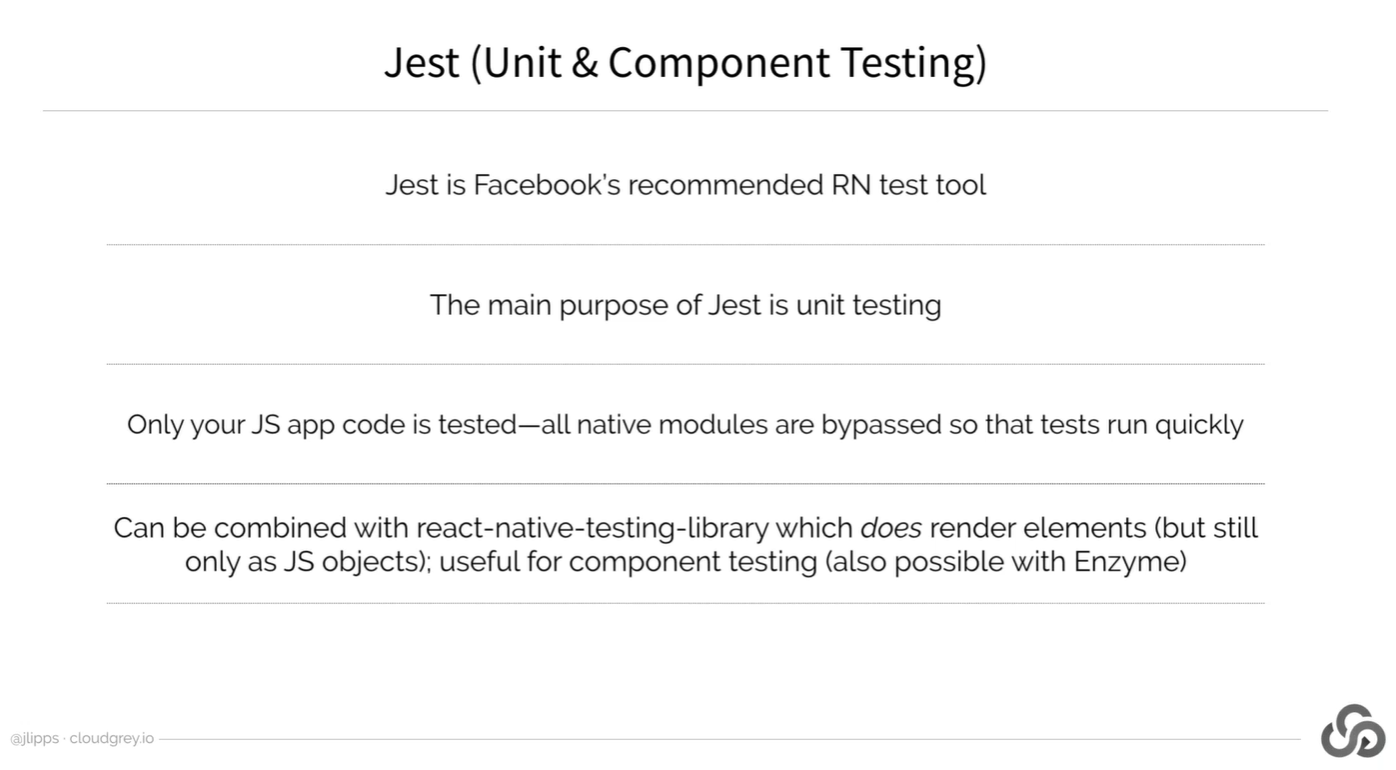

So, one thing people use is called Jest. Jest is for unit and component level testing. It’s Facebook’s recommended React Native test tool, and its main kind of bread and butter is unit testing. So, not UI testing, not end-to-end testing which is the kind that Appium does, but unit testing of your JavaScript app logic. That’s the whole point of Jest.
In this model, only your app code is tested, only the JavaScript app code is tested. All of the Native modules that it connects to are bypassed, which means that no native elements are rendered, no native APIs are accessed. This is really great for unit testing because it means that your tests run really quick, just like running JavaScript unit test of a website. You can get one level higher if you mix it in with a library like Enzyme or something called React Native testing Library, which goes one step further in terms of actually rendering components, but in a mock or virtual way.
In other words, it turns them into JavaScript objects rather than Native UI elements, so it’s kind of one step closer towards end-to-end testing but still completely virtual and therefore quite fast. But of course, you also don’t have the security and peace of mind of running an end-to-end test on your application, which you would always want to do in addition to any unit and component testing.
But this is a great way to test many internal aspects of your application not having to rely on Appium or some other tool to do UI tests of your React Native app, which can be a lot slower than these kinds of tests. And, because this is a unit testing model, all this testing happens via the command line: there were no simulators or devices that are loaded – this is all just in memory testing.

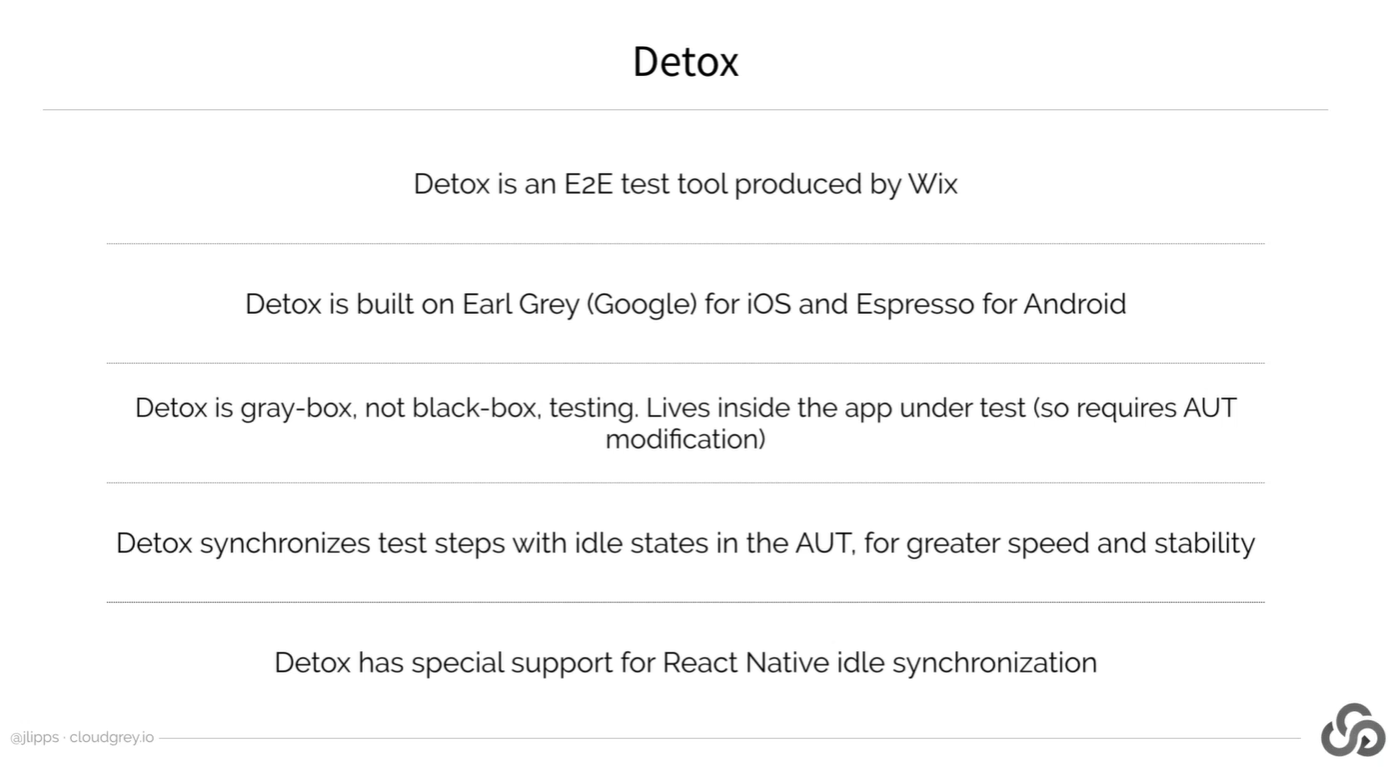

For end-to-end testing, there’s a tool called Detox, which is produced by a company called Wix, and it’s built on a couple other gray box testing technologies from Google. There’s Espresso for Android, which is Android’s first-class test automation framework. Then, there is a framework called Earl Grey, which is kind of an Espresso clone for iOS that Google developed.
I said Detox is gray box, which differentiates it from Appium, which is a black box testing model. Gray box tests live inside the app that you’re trying to test, which means that your app will undergo modification. So, if you’re not using React Native, you’ll have to build Detox into your app explicitly. If you are using React Native, Detox will do that for you using their command line tool.
Either way, the app under test is modified to support Detox having access to the internals of the application. Why does it need access to the internals of your app? Because it wants to use Earl Grey and Espresso to make sure that your app is in a state where it can be interacted with. One common problem with UI tests is that you try and interact with your app at a point in time when your app isn’t actually interactable: the view might be loading, an element might not be available, there might be a spinner, there might be a network request.
There’s a lot of issues in writing UI tests for web apps and mobile applications that have to do with making sure that your app is in the correct state. Detox and Earl Grey and Espresso try and get around this by living inside of your app under test so that they actually know, from the app’s perspective, whether or not anything is happening, and they can defer the execution of any test steps until a point at which your app has stopped doing something. This makes it easier to write tests scripts, because you don’t have to worry much about, waiting for application states.
Detox claims, and it’s probably true, that it leads to greater speed and stability of your tests. Actually, Detox has special support for React Native and it hooks into multiple layers of React Native to make sure that it waits for appropriate moments and the React Native flow for app interaction as well. So, of all of the UI testing tools that are out there, Detox is the one that’s designed most specifically to work with React Native.

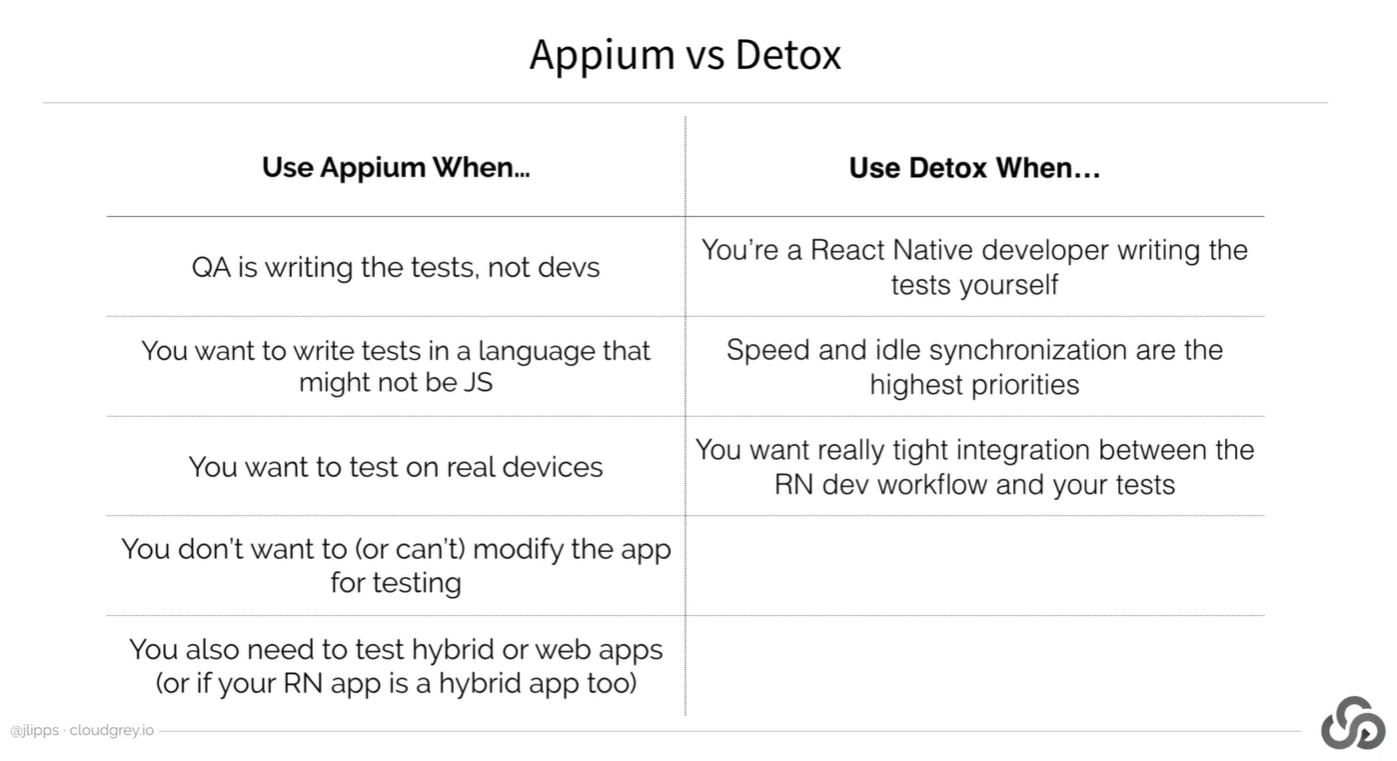

Let’s look at Appium versus Detox. We didn’t do a big overview of Appium, but I’m assuming that you know a little bit about it. Let’s talk about when you might use Appium versus when you might use Detox.
Based on the attributes that I was just sharing with you, I would argue that you should use Appium. If you have a situation where maybe a QA team is writing the test and not the developers themselves (because, of course, it might be difficult to modify the app if you’re just receiving it from developers and responsible for testing it).
If you want to write tests in a language that’s not necessarily JavaScript, you would use Appium because Detox requires you to use JavaScript. If you want to test on real devices, Appium has a much stronger story there. Detox, I believe, works on real Android devices, but does not yet have real iOS device support. If you don’t want to or, for some reason, aren’t able to modify the app and build in the libraries that Detox relies on, then you can use Appium, because Appium is black box that automates from the outside of your application and doesn’t need to modify it.
Of course, if you need to test, let’s say, a hybrid app or a web app, Appium has a really great story with its web driver-based protocol of automating those other app modes, but Detox is less concerned about that. But, you might use Detox if you are React Native developer who is writing the tests yourself because there’s a really nice integration there; or, if the idol synchronization features of Detox are really your highest priorities and you just have no time for learning how to wait for app states appropriately with Appium.
I personally have written a lot about how to do that appropriately with Appium, and I don’t think it’s too challenging. I think you can do it successfully, but there is certainly something to be said for a framework that lives inside your app and actually knows with a high degree of certainty when your app is idle and can receive new test commands. And then, Detox has a really great integration story with the React Native workflow. So, if that’s a need that you have, Detox might come out on top for you.
That’s basically what we’re going to talk about today. Some further resources for you to take a look at:
A: Appium tries to find elements using a locator strategy, and Appium has a number of different locator strategies. The most commonly recommended strategy is to find an element by its accessibility ID. And as we saw, when you set a test ID in your React Native application, it comes out as an accessibility ID on iOS, and then if you make sure to set the accessibility label as well that also comes out as an accessibility ID on Android.
That’s by far the easiest way to find elements using Appium with React Native is to set both testID and accessibility label. Appium has another locator strategy calls class name, but that doesn’t find an element by an attribute that you set as class on a React Native component. What it does is it finds an element by its Native UI object class, so there are Native UI objects called Android.widget.edittext, or on iOS UI elements text field.
If you use Appium’s class name locate a strategy, you’ll be finding elements by that criteria. So, unfortunately, if you set the class property or attribute in your React Native component, as far as I’m aware, that doesn’t make it into the Native component in any way which is discoverable by Appium. So, I would say that yes, you should use testID and accessibilityLabel when trying to make sure that your React Native app is testable with Appium.
A: No. This is because React Native apps don’t live in another context from the perspective of the mobile operating system. They actually are Native applications rendering Native UI components and all that. So, the JavaScript that’s running in a React Native app is not running inside of a WebView at all. There is a completely separate JavaScript engine called JavaScriptCore, which React Native bundles within every React Native application. That’s what powers the React portion of your Native app, but there’s no WebViews at all.
However, you can build a React Native app that has a WebView inside of it, and then anything inside that WebView, of course, is running using the operating systems’ JavaScript engine and HTML renderer and things like that, and you can use Appium’s context API to switch into a WebView inside of a React Native application. But, if you’re just automating the Native portion of a React Native app, there’s no need to switch context to any other mode because it’s just a Native mode just like any other truly Native application.
A: Yes, it does. That would be my recommended strategy: using Appium with React Native. Make sure, just like with any other application you’re testing, you use WebDriver weights appropriately to wait for your application to be in the correct state, whether that’s waiting for an element to be present or not present, or a view to be loaded, etc.
A: Detox uses espresso, so it’s the same comparison. Using Detox or Espresso, the test will run faster and it will run without needing to use any kind of weight on your test code itself. That’s the benefit of the gray box testing model: because Espresso, and therefore Detox, runs in memory with your application, they’re able to ask your application whether it’s in the midst of downloading or animating something, or moving to a new view, for example. If so, it ensures that no more test apps are executed until the view is idle, which tends to make tests more stable and fast.
With Appium, there are a few different options.
Using the gray box testing model, you can also interact with code inside of your application or call methods inside your app directly without going through the UI.
A: I’d recommend WebDriverIO. It’s the best-maintained JavaScript Selenium and Appium client out there, and it’s got great extensions and plug-ins. All around, it’s a good project.
React Testing Library is a testing utility tool designed to test the actual DOM tree generated in the browser by React. The key objective of this library is to assist you in writing tests that simulate how a user might interact with your application.
Some advantages of React Native for building mobile apps include:
Mobile apps built with React Native differ from those created with alternative frameworks in the following ways:
When a file is modified, live reloading reloads or refreshes the entire application. For instance, if you were four links into your navigation and you saved a change, live reloading would get the application restarted and load the application to the initial route.
Hot reloading only updates the altered files without losing the state of the application. For instance, if you were four links deep in your navigation and you saved an update to some styling, the state would not change, but the new styles would display on the page without you having to browse back to the page you are on as you would still be on the same page.
